ComputorEdge AutoHotkey Scripts and Useful Utility Downloads

Post your working scripts, libraries and tools
Dzenid
Posts: 1
Joined: 11 Apr 2020, 04:03

Re: ComputorEdge AutoHotkey Scripts and Useful Utility Downloads

28 May 2020, 12:31

Nice, Jack,,, my admiration.
User avatar
jackdunning
Posts: 118
Joined: 01 Aug 2016, 18:17
Facebook: https://www.facebook.com/ComputorEdgeEBooks/posts
Contact:

Update for Ryan's RegEx Tester

20 Jul 2020, 14:40

Ryan's RegEx Tester sits near the top of my list of favorite AutoHotkey scripts. That's why I added it to this list of AutoHotkey scripts.

toralf has posted an updated version of RegEx Tester in this forum. I've added the link to the ComputorEdge AutoHotkey Scripts page.
gibbons6546
Posts: 21
Joined: 07 Apr 2020, 11:53

Re: ComputorEdge AutoHotkey Scripts and Useful Utility Downloads

20 Jul 2020, 22:44

Thanks. I appreciate your work as well as the compilation of scripts for the community. I just started using QuickLinks.
User avatar
jackdunning
Posts: 118
Joined: 01 Aug 2016, 18:17
Facebook: https://www.facebook.com/ComputorEdgeEBooks/posts
Contact:

Measuring Distances on Your Computer Screen—MouseMeasure Onscreen Ruler

09 Aug 2020, 06:12

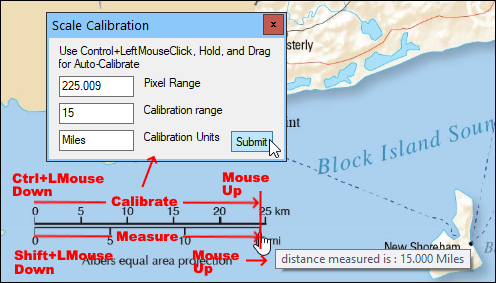

I've added a new sample script for measuring distances on your computer screen: MouseMeasure.ahk.

The MouseMeasure.ahk script uses the mouse to calculate a calibrated distance between two points on the computer monitor.

To Calibrate Range:
  1. Locate mouse cursor at start point — CTRL+LButton and hold.
  2. Drag mouse to end of scale and release the left mouse button.
  3. Enter length of scale and units (i.e.15 Miles).
Manual Calibration: CTRL+ALT+Z

To Measure Distance:
  1. Locate mouse cursor at start point — SHIFT+LButton and hold.
  2. Drag mouse to end of measurement and release the left mouse button.
  3. Distance displayed in tooltip and saved to Clipboard for paste operation.
CTRL+ALT+F12 for Help Message.

User avatar
jackdunning
Posts: 118
Joined: 01 Aug 2016, 18:17
Facebook: https://www.facebook.com/ComputorEdgeEBooks/posts
Contact:

On Screen Ruler Using GDIPlus Graphics

05 Sep 2020, 16:49

I've updated the MouseMeasure.ahk script to use GDIPlus Graphics. The graphics are much smoother. I discuss the GDIPlus functions (Hellbent's version) in "How to Draw Lines with AutoHotkey Using Windows GDIPlus Graphics"


To calibrate the app range:

1. Set mouse cursor at start point — CTRL+LButton and release.
2. Move mouse cursor to end of a known scale.
3. Press the Alt key.
4. Enter length of scale and units (i.e. 10 miles), then Submit.

Manual Calibration: CTRL+ALT+Z

To Measure Distance:

1. Set mouse cursor at start point — CTRL+LButton and release.
2. Draw line over target distance.
3. Press the Shift key.
4. Distance displayed and saved to Clipboard.

Use cursor keys to move mouse cursor single pixel increments.

To clear measurement line and ToolTip, press Delete.

Ctrl+Escape to Exit App.

CTRL+ALT+F12 for this Help Message.
